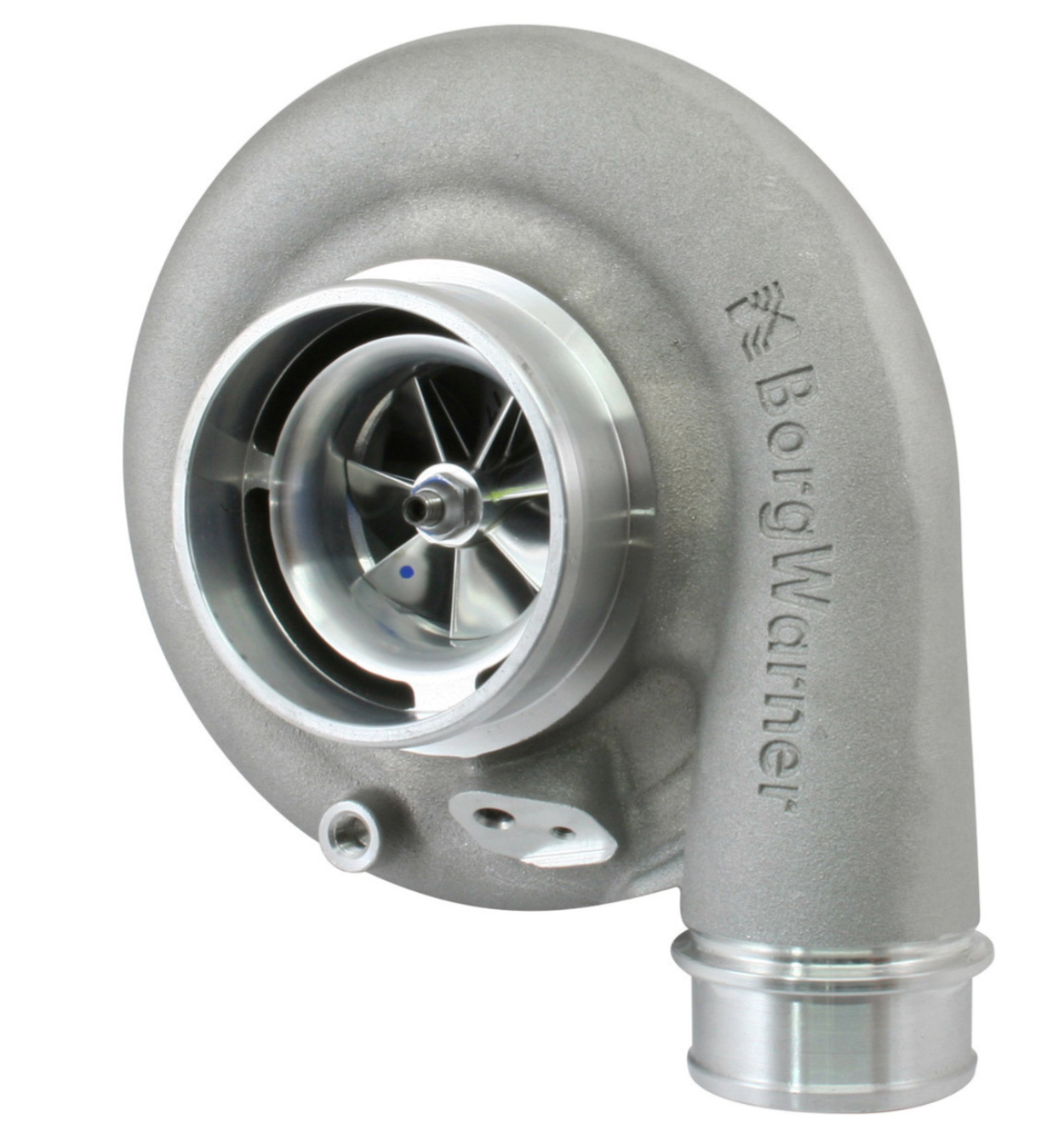

Borg Warner - S366 SX-E 66/73 (9180)

S366 SX-E 66/73

BorgWarner Turbo Systems Aftermarket is pleased to announce the release of the AirWerks® SX-E super core assemblies for performance applications. These new part numbers are purpose engineered for both diesel and gasoline high performance applications.

S300 SX-E super cores contain the following exciting new features:

•  360 degree thrust bearing
•  Compressor cover integrated speed sensor port and pre-machined boost port
•  Flexible compressor cover outlet options (S300SX-E only)
•  Forged milled (billet) compressor wheels with extended tip technology
•  Optimized compressor stage aerodynamics
•  Interchangeable with existing turbine housings for upgradability

The BorgWarner super core assembly consists of the compressor cover attached to the cartridge, all cartridge to turbine housing mounting hardware, clamp plates, cap screws and mounting gaskets. Speed sensor and turbine outlet V-band are not included with turbo assemblies.  Choose a turbine housing from our extensive list of factory housings as well as our custom cast performance housings.

Compressor Specs:

- Borg Warner 4" Inlet 2.5" outlet compressor housing with port shroud map width enhancement, pre tapped for speed sensor and pressure port. (parts not included and will need to drill through)
- 66.11mm inducer 91.44mm exducer FMW Forged Milled Wheel (Billet)
